Products / Acoustic panels
Resonraft
Absorption overhead, walls left free.

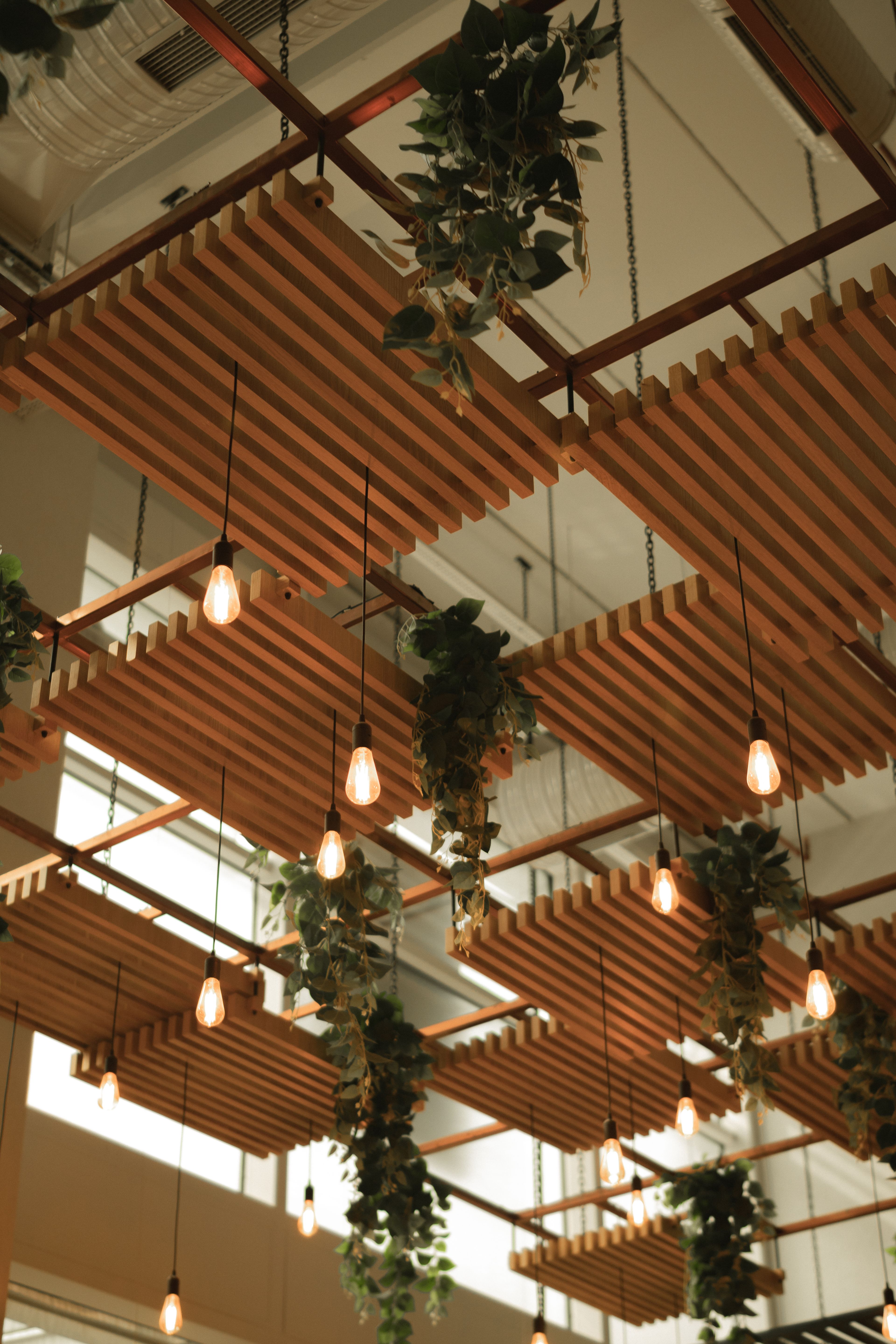

Suspended acoustic rafts and baffles that absorb sound from above, ideal for rooms where walls are glass, full of art, or simply too precious to cover. Available as circular rafts, rectangular panels, linear baffles or freeform shapes. Hung from the ceiling on thin cables, they appear to float.
Technical specifications
NRC (Noise Reduction Coefficient)0.75–1.00 (both faces absorb)
ShapesCircle, square, rectangle, linear baffle, custom
Standard sizes600–2,400 mm diameter/length
Thickness25 mm or 50 mm
Weight3–6 kg/m²
SuspensionStainless steel cables, adjustable height
MaterialPET felt, fabric-wrapped, or timber veneer
Fire ratingClass B (EN 13501-1)
Finishes & options
Every Resonraft is made to order in the finish you choose. These are a starting point — custom colours, sizes and shapes are standard.
PET felt (200+ colours)
Fabric wrapped
Timber veneer (oak, walnut)
Printed graphics
Two-tone (different colour each side)
Suitable for
Open-plan officesRestaurants & barsLobbies & atriumsSchools & librariesMuseums & galleriesSwimming pools
Downloads
Technical documents, brochures and specification data for Resonraft.
PDFResonraft BrochureComing soon
PDFTechnical Data SheetComing soon
PDFSuspension GuideComing soon
Frequently asked questions
Ready to specify Resonraft?
Tell us about your project and we'll reply within one working day.
